How to Do a Plasterboard Takeoff

Follow this tutorial to learn how to do a takeoff to measure the amount of plasterboard you need for a job.

Prepare Your Page

First, you'll need to create a takeoff by uploading a PDF file of your construction plans and setting the correct scale before taking any measurements.

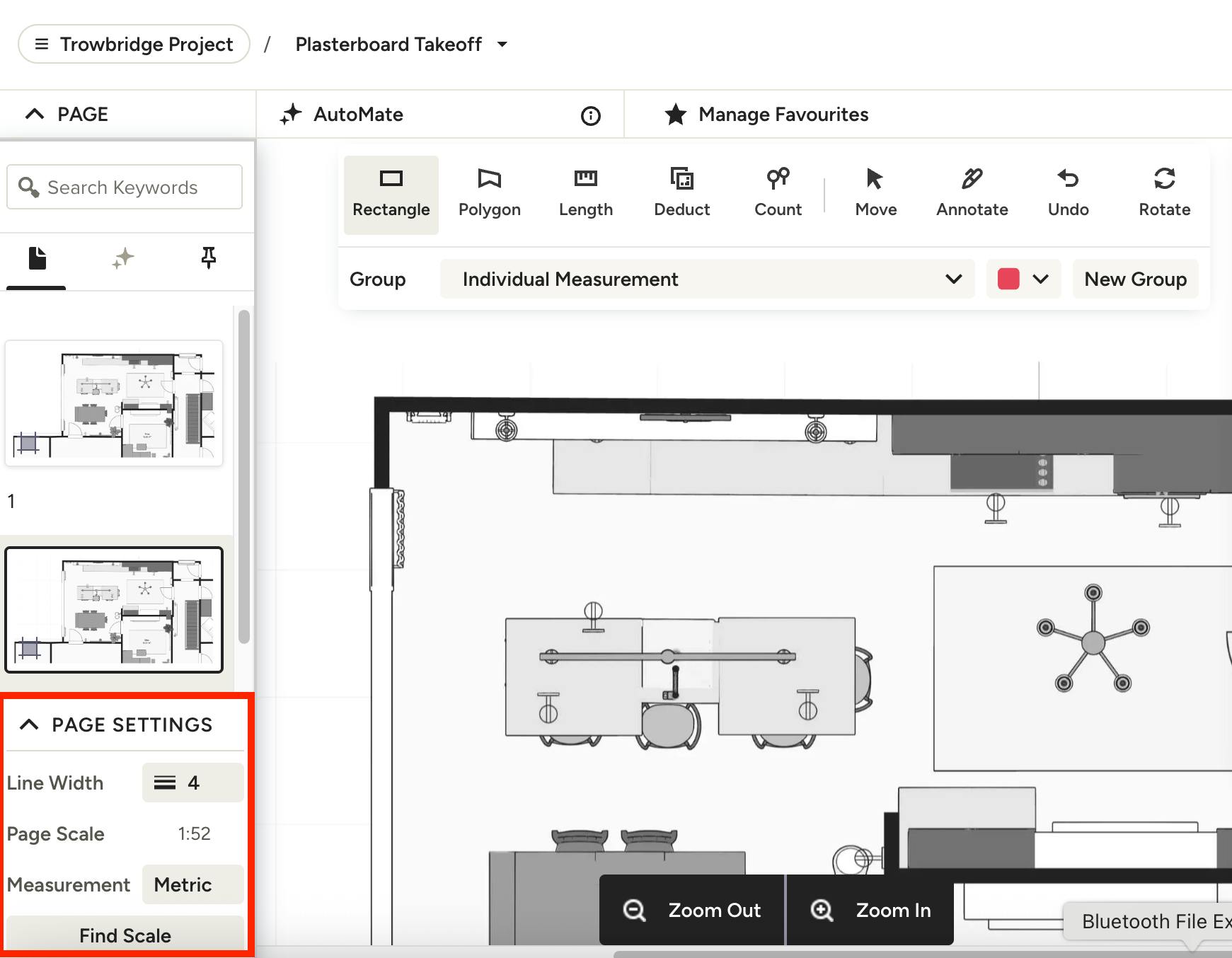

Make sure the line width is to your liking so that it’s easy to spot when taking your measurements on the canvas. You’ll find this on the left side of the canvas in Page Settings.

Set Up Groups

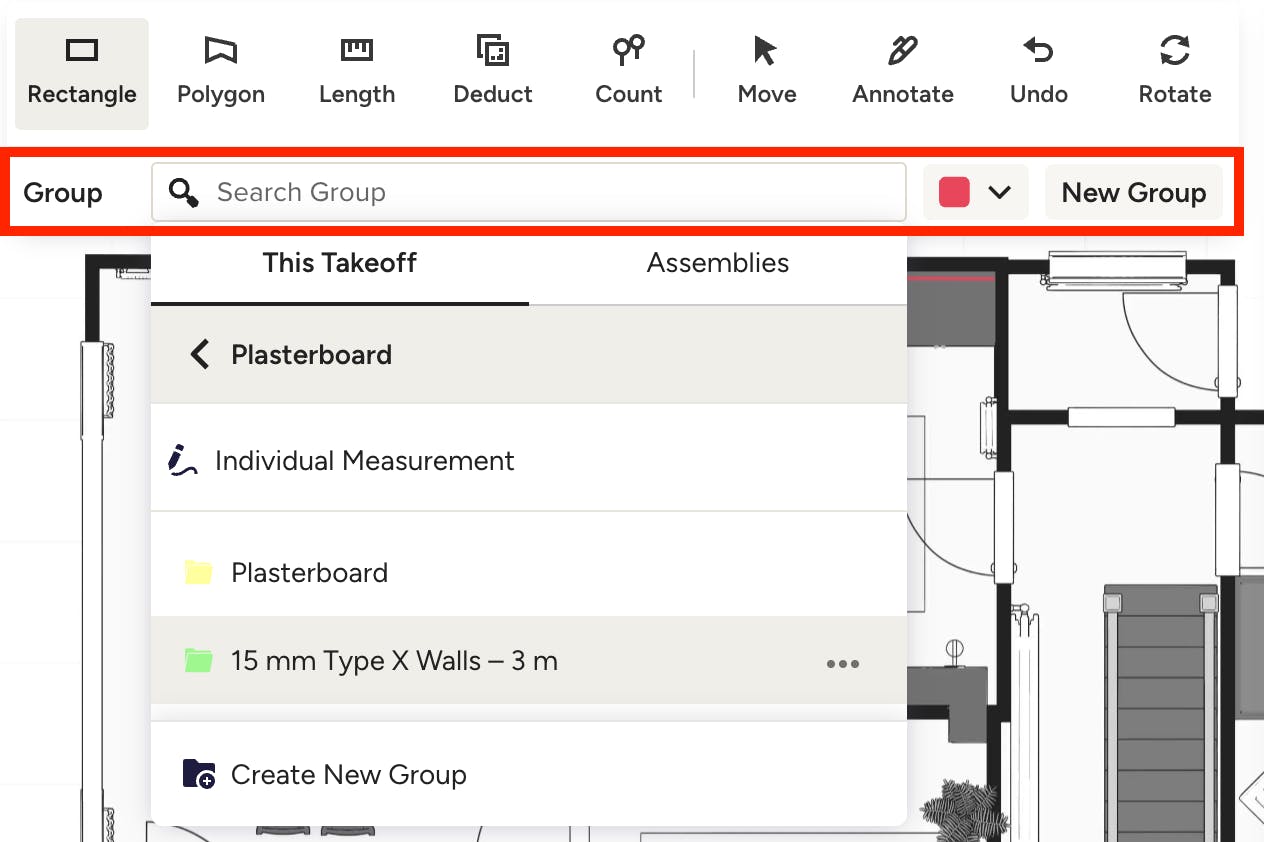

You will either use an existing group from the Group dropdown in your toolbar (if you’ve already set up a plasterboard assembly, this would be the perfect time to use it!), or you can set up a new one. If you use a new group, click New Group, give it a name (e.g. 15 mm Type X Walls – 3 m), select a colour and a category. Mark it as a favourite if it’s a group you plan to use often – favourites need to have a unit of measurement assigned to them.

Measure Walls

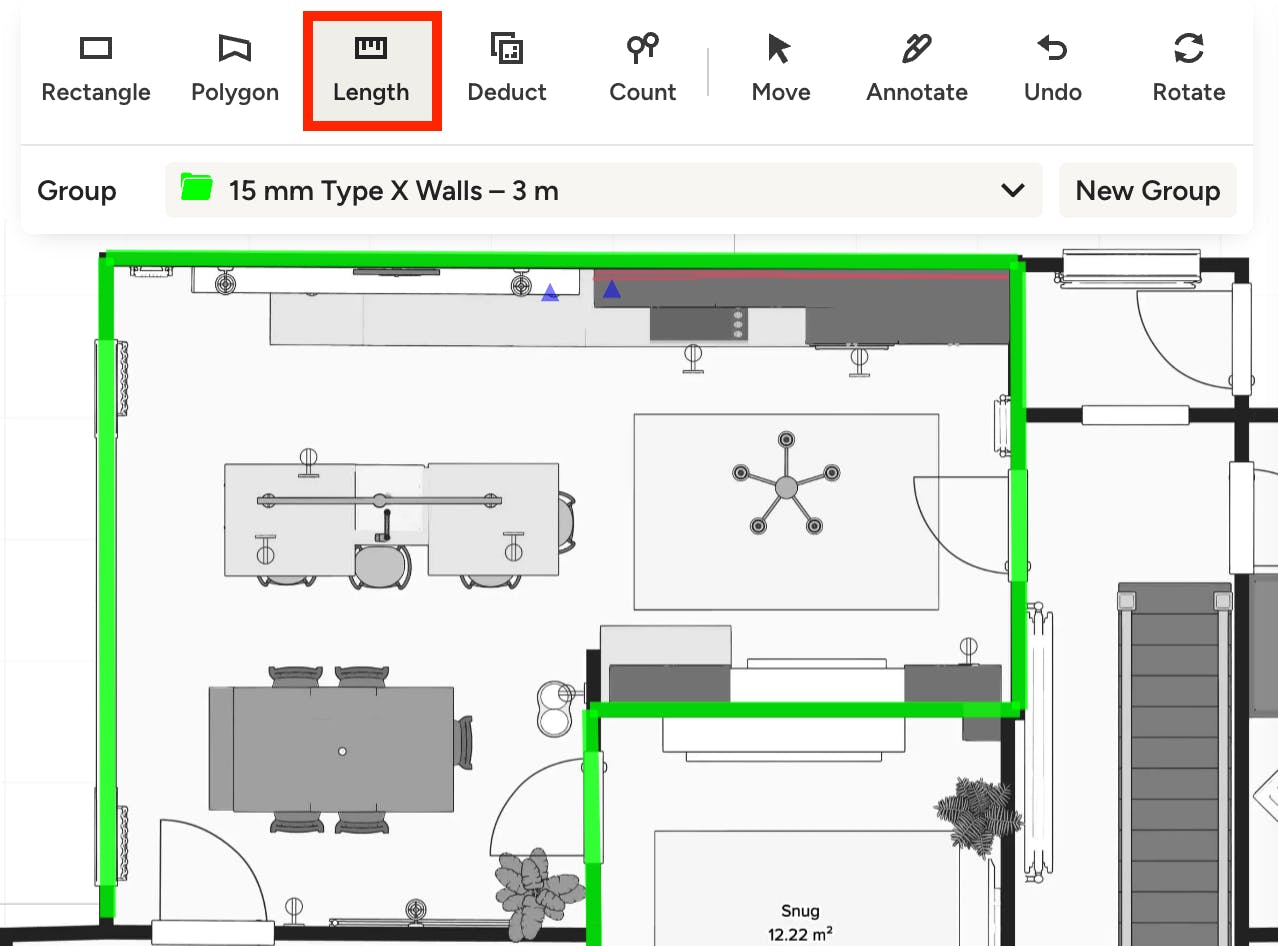

Use the Length tool to take your wall measurements on the plan – select the tool first and then choose your group or assembly. On the canvas, click on the end of a wall to start, click again to drop a marker and change directions (like on a corner), and double click (or hit the "enter/return" key) to end the measurement. You can use the "delete" key on your keyboard to undo the last click, allowing you to easily correct a mistake. Check out Takeoff Keyboard Shortcuts for more tips.

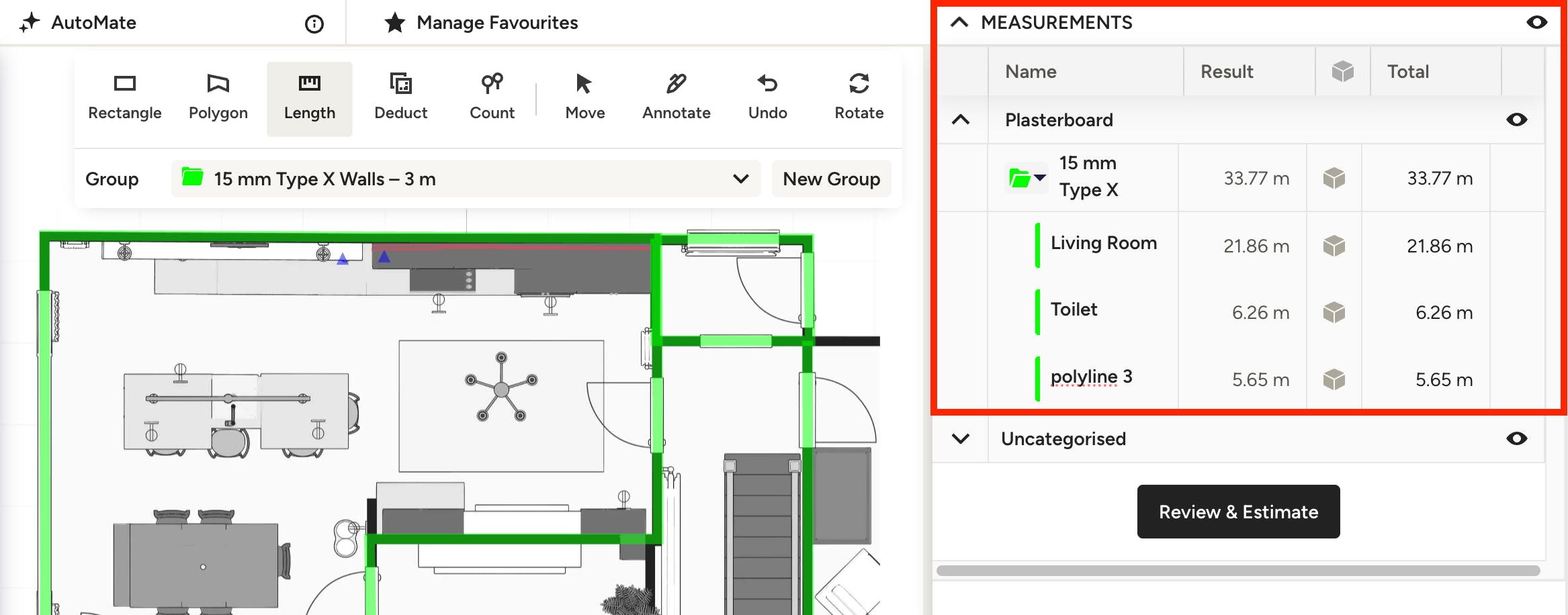

All of the individual measurements will be added to the measurements drawer on the right of the screen in the group folder you selected at the start, giving you a total sum of measurements at the top of the group. Each measurement can be renamed if you want to be able to keep track of them by specific room, level, etc.

Add Dimension Parameters

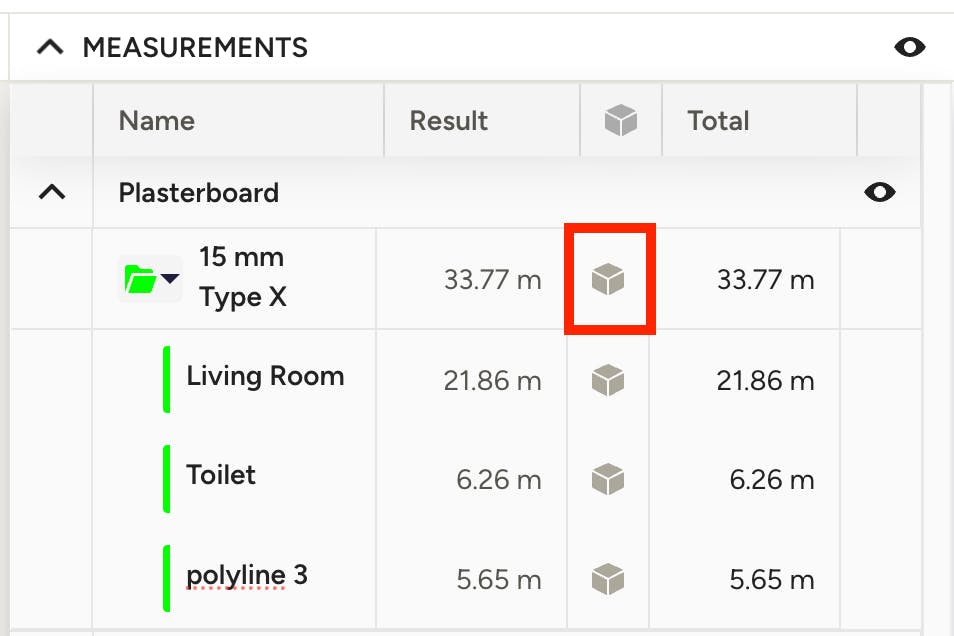

Once all of your wall measurements are done, you can add in dimension parameters by clicking the dimensions cube at the top of your measurements drawer on the group you used.

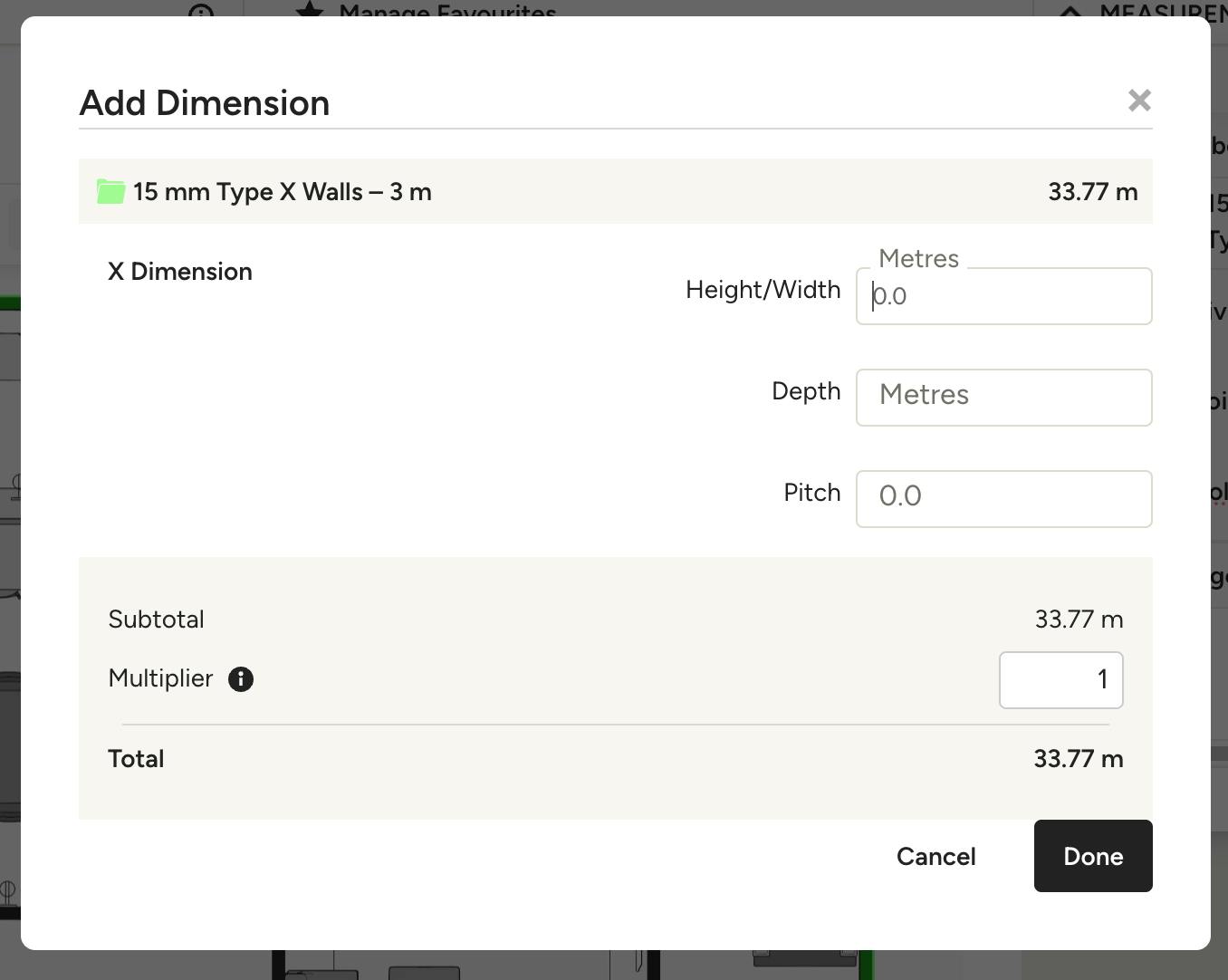

In the modal that appears, you can input height/width, depth and pitch as needed. In this example we know that our walls are 3 metres high, so we add that in. This will be multiplied by the metres we just measured on the plans, giving us the total square metres of the walls in the group we set up at the beginning.

Pro Tip: You can also add a multiplier to account for walls that need plasterboard on both sides, instead of measuring them twice – just add a 2 to the multiplier parameter on applicable measurements.

Read Adjusting Takeoff Measurements in the Measurements Drawer for a more in-depth tutorial on the Measurement Drawer.

Ceiling Plasterboard

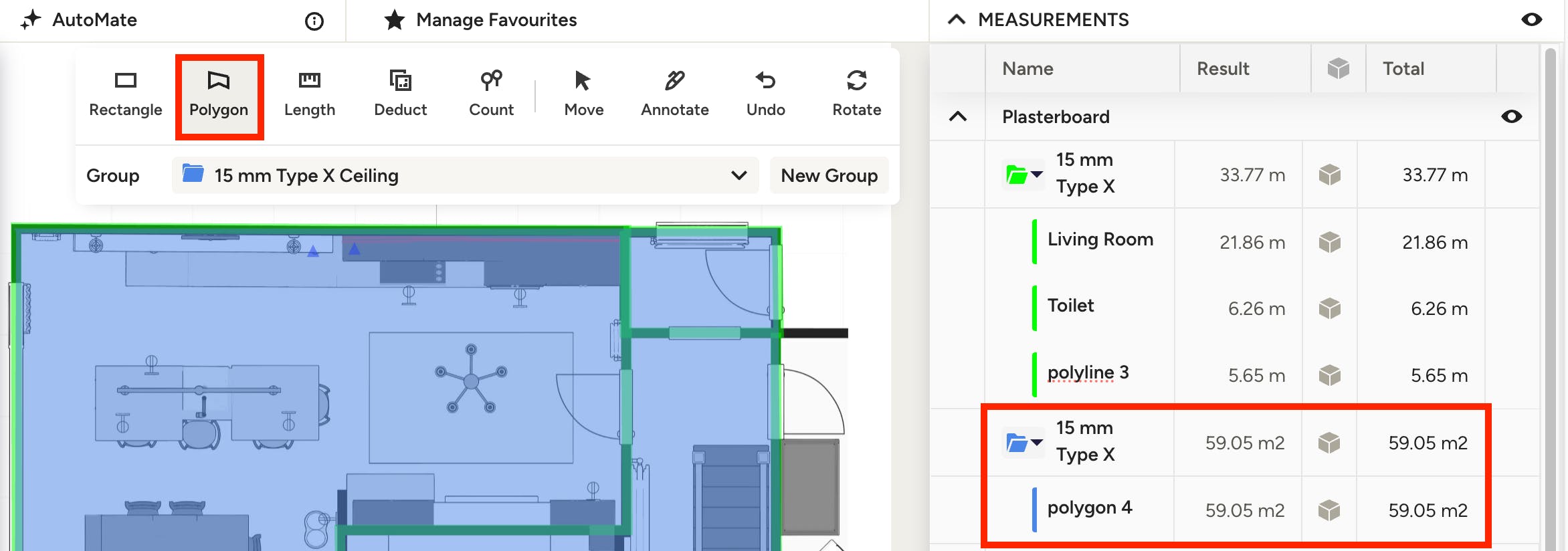

For calculating the amount of plasterboard needed for a ceiling, use the polygon or rectangle tool. Create or select an existing group (e.g. 15 mm Type X Ceiling) then click to start the measurement, click again to drop a marker and change directions (like on a corner) and double click to end the measurement when you’ve met your starting point again. All of the individual measurements will be added to the measurements drawer on the right of the screen in the group folder you selected at the start, giving you a total sum of measurements in the type you specified for the group.

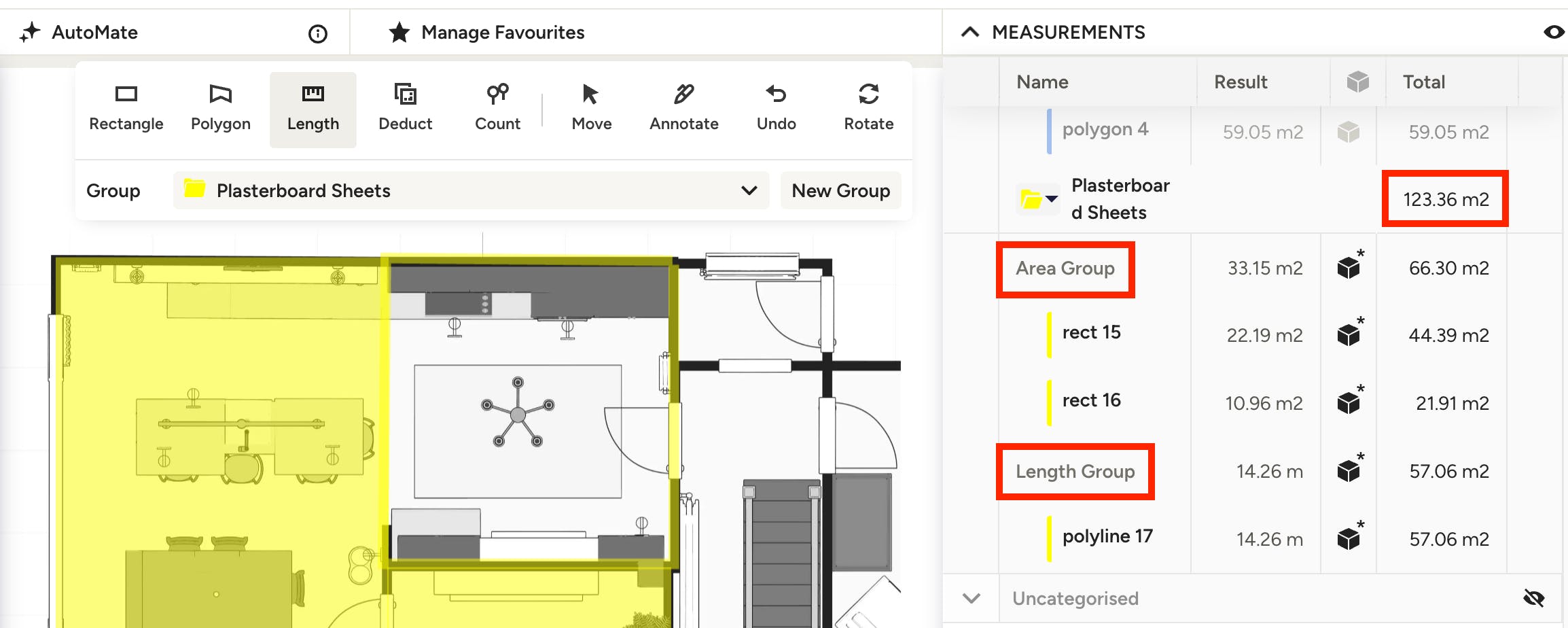

You can also use the same group across multiple tools and the measurements will appear under said group, broken out by type of measurement. For example, if you are using a Plasterboard Sheets group that can be applied to both walls and ceilings, the wall measurements would appear under Length Group (linear metres)  and ceiling measurements would appear under Area Group (m²/m³). You can apply dimension parameters per sub group and the total measurement will be calculated at the top. This can help keep your estimates less complex by having fewer line items.

Hide Layers

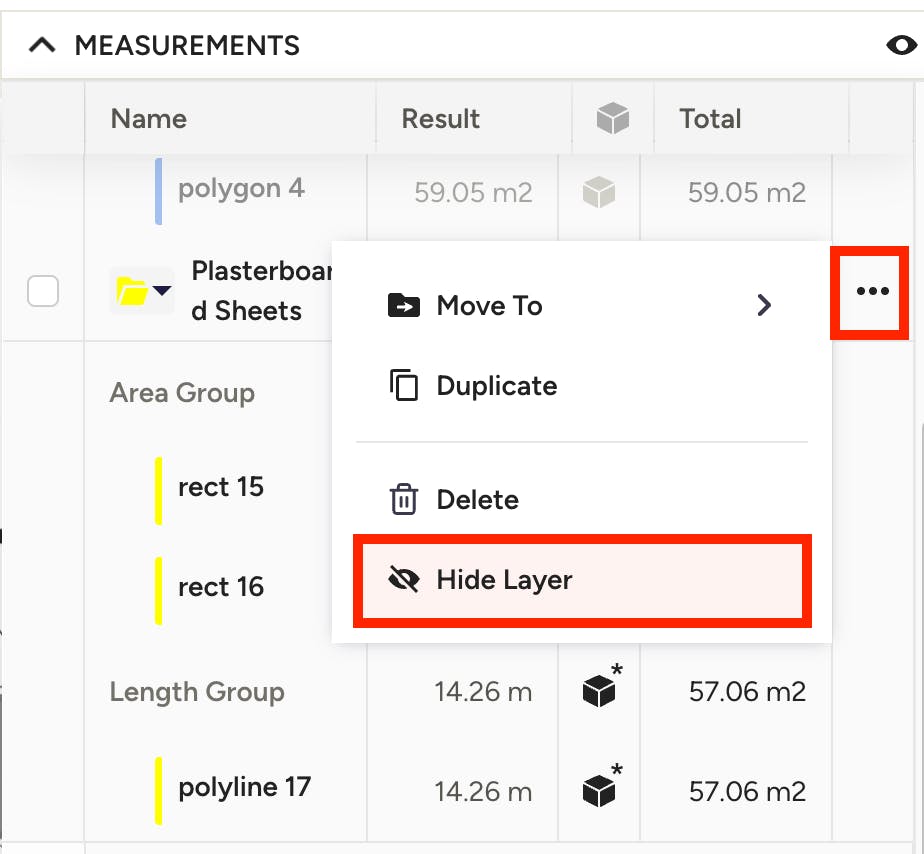

If your canvas is looking cluttered with all of your measurements, try hiding layers in the measurements drawer to clean up your view.

Check out How to Hide a Layer on the Takeoff Canvas for more details.

Add Counts

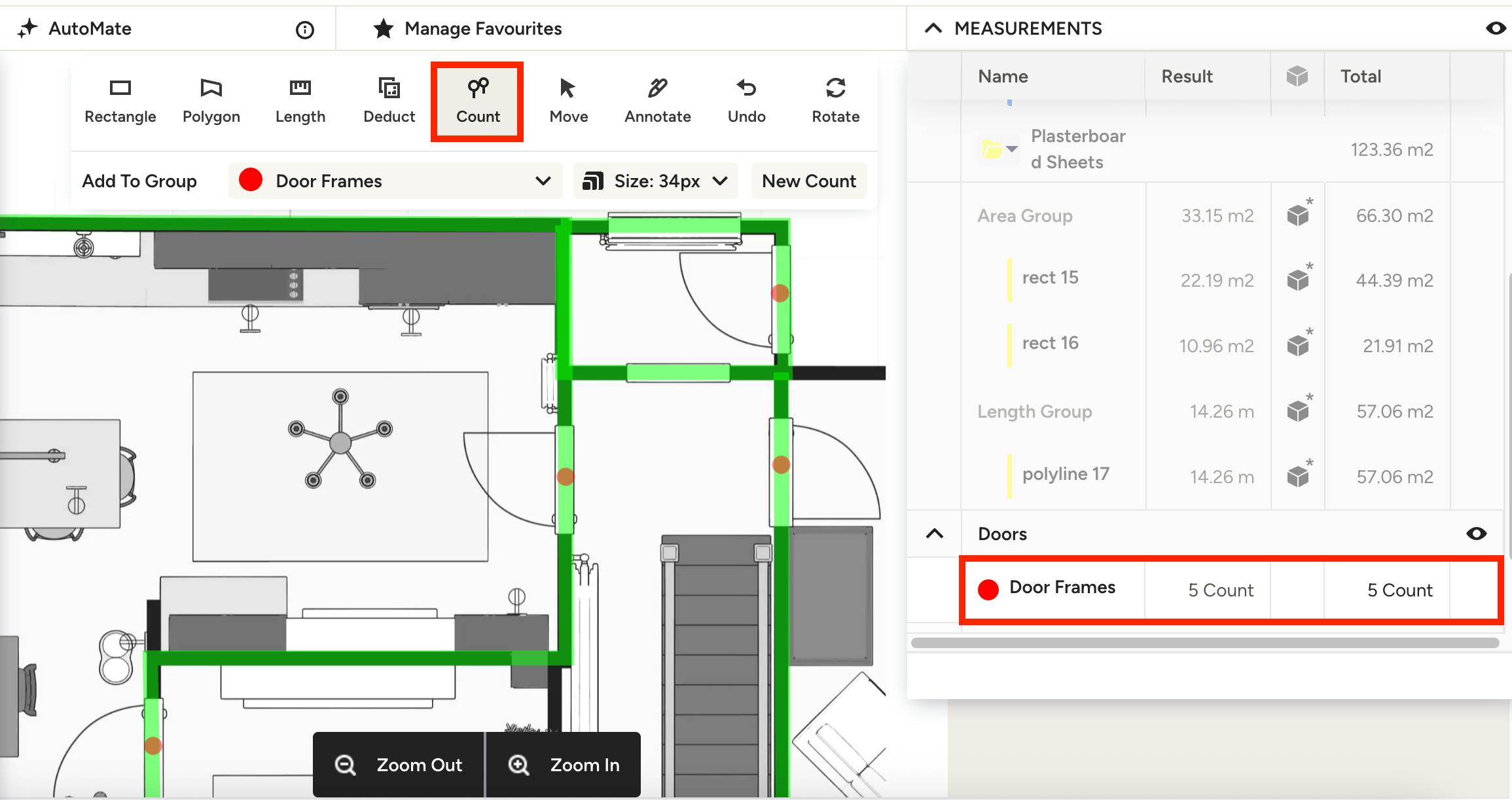

To account for components such as corner beads, use the Count tool and either create or select an existing group (e.g.: Door Frames) then click the plans wherever a door frame will be applied. You’ll see the overall count in the group in the measurements drawer on the right.

Clone Page

Once you have a page with measurements that can be reused or repurposed for another material, like a paint takeoff, you can clone that page and rename it to save yourself the hassle of taking measurements again.

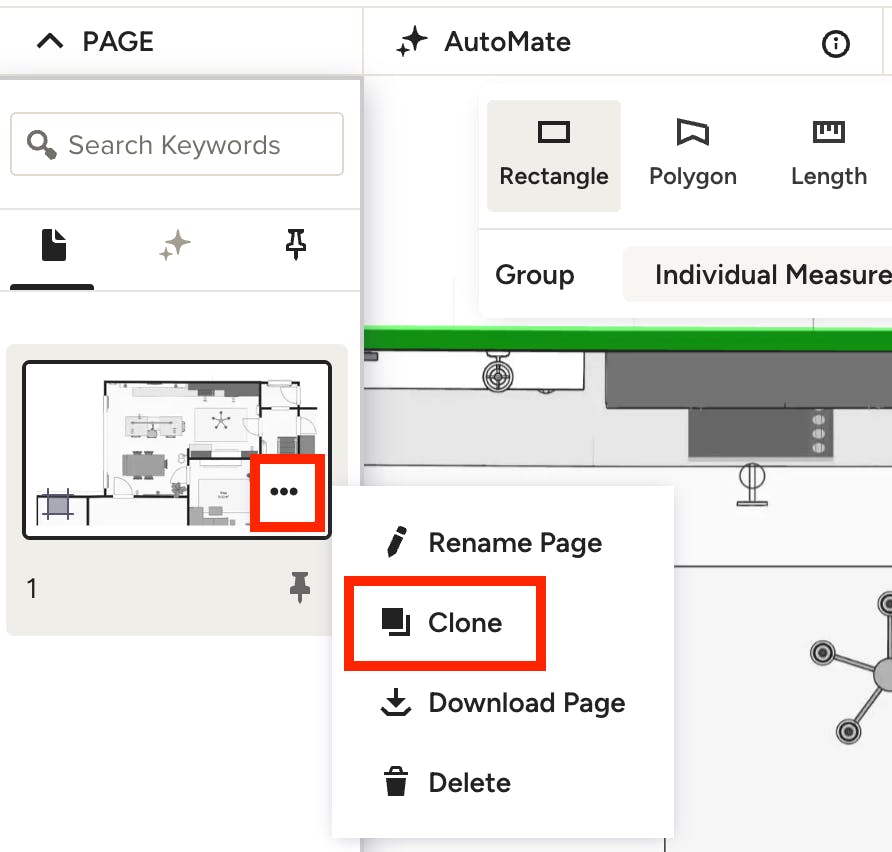

Clone a page by using the three dot menu on the thumbnail of the page you wish to clone in the Page section on the left side of your screen. Click Yes when asked if you want to clone with measurements, then rename the page according to the type of takeoff you’re doing, like Paint.

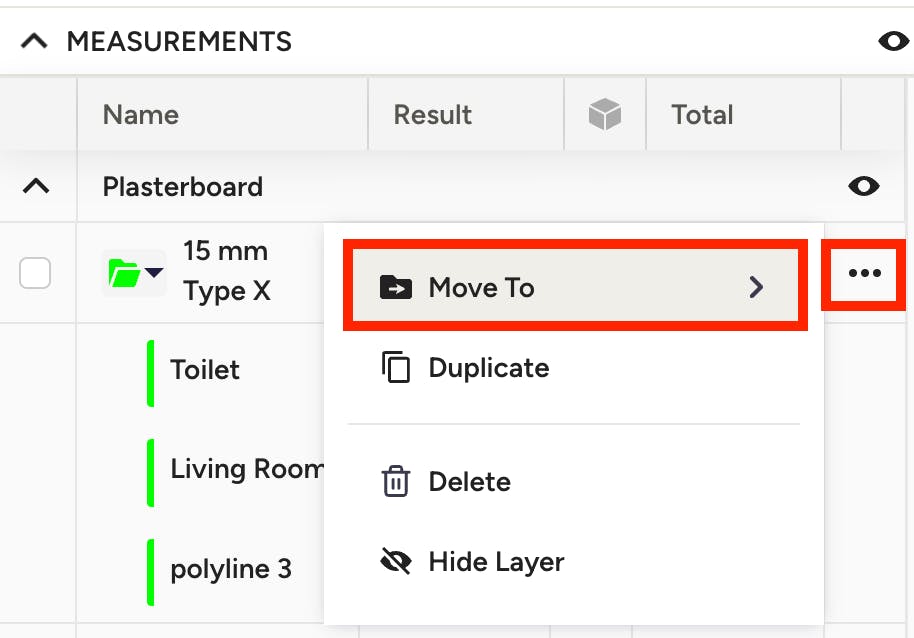

On the new page, you can move the existing measurement(s) to a new group from the measurements drawer, so that you don’t have to re-measure. Click the three dots to the right of the group you wish to move, select Move To, then choose an existing group or create a new one. You can also delete any unnecessary groups from the new page and add additional groups as needed.

Create Estimate

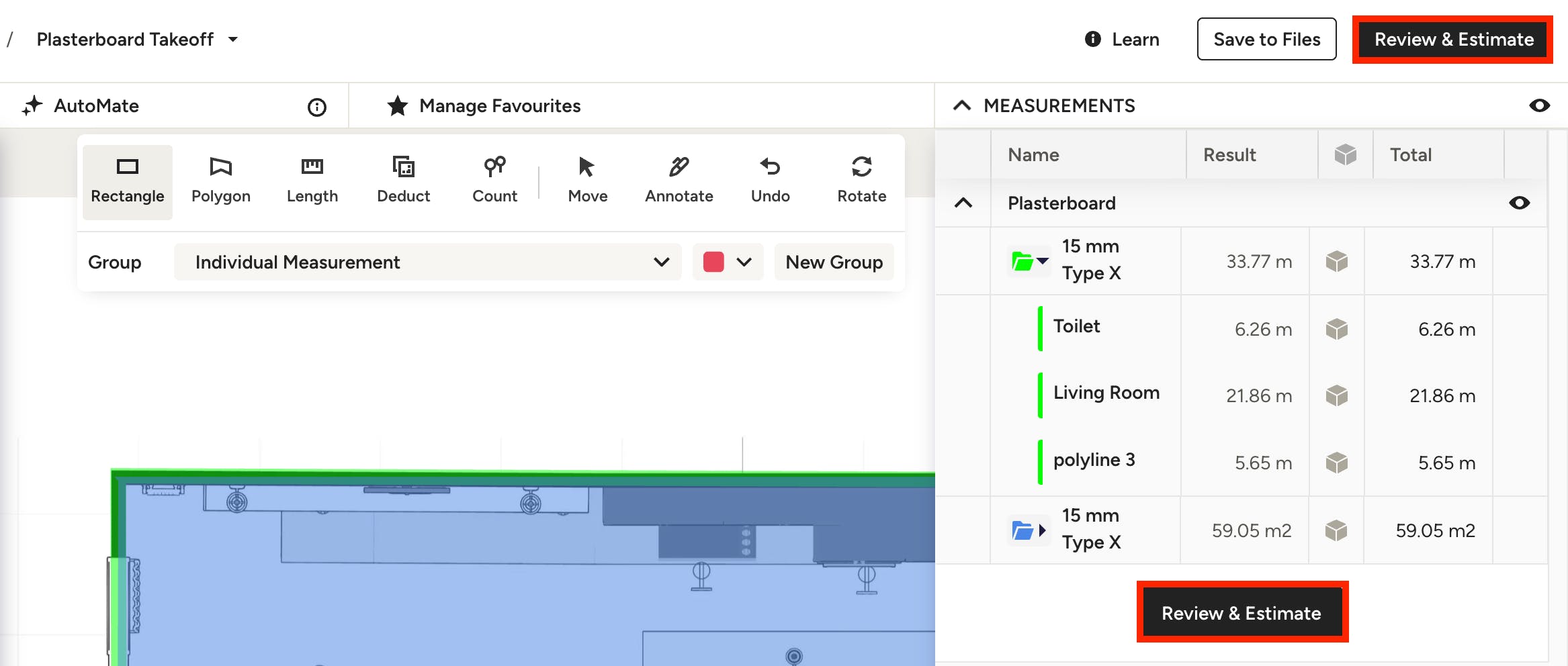

Once your measurements are complete, you can transfer your takeoff measurements into an estimate. Learn more about this step in How to Use Takeoffs on Houzz Pro.
